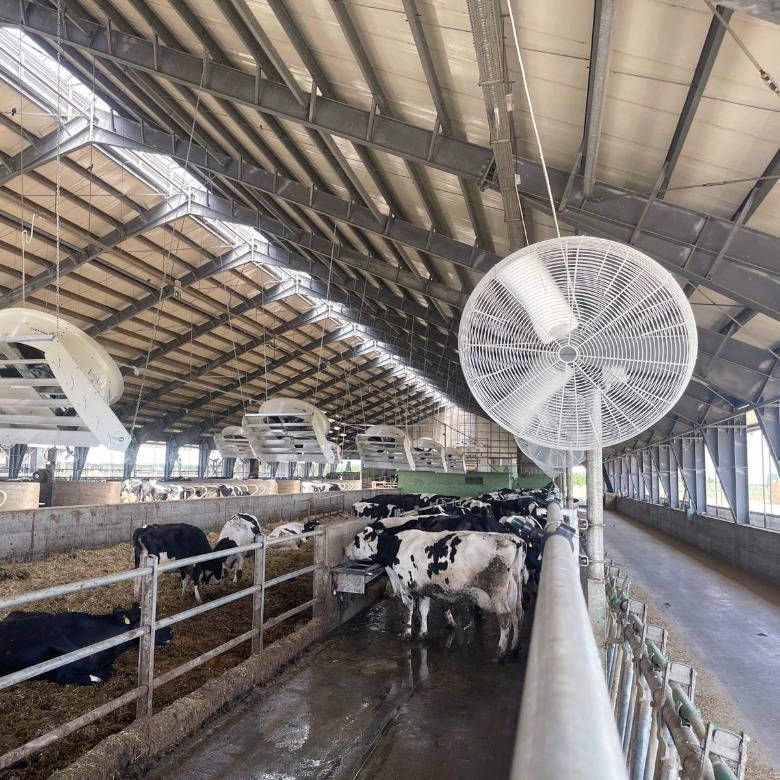

Basket Fan
The Royal De Boer Basket Fan is a compact yet powerful ventilation solution designed for cooling smaller spaces within agricultural buildings. It is also highly effective at repelling flies, making it a valuable addition to any barn ventilation system.
Built for demanding farm environments, this fan delivers strong, energy-efficient performance while maintaining reliability and durability. Supplied with a mounting bracket, it can be installed on either walls or ceilings, offering flexible positioning to suit your setup.
The integrated protective guard allows for safe installation at any height, while the fully enclosed, maintenance-free motor ensures long-lasting operation with minimal upkeep. The fan can be operated via a simple on/off switch or connected to an automatic temperature-controlled system for enhanced efficiency.
Key Features
- Compact design ideal for smaller areas and targeted cooling
- Helps repel flies and improve livestock comfort
- Energy-efficient performance
- Wall or ceiling mounting with included bracket
- Protective guard for safe installation at any height
- Fully enclosed, maintenance-free motor
- Compatible with manual or temperature-controlled operation
Technical Specifications
60 cm (24”) Model
- Fan Diameter: 60 cm (24”)
- Air Capacity: 8,950 m³/h
- Power Consumption: 0.36 kW
- Current: 2.7 A
- Power Supply: 230 V
- Motor Type: AC motor
- Drive System: Direct drive
- Motor Efficiency: IE2
91 cm (36”) Model
- Fan Diameter: 91 cm (36”)
- Air Capacity: 19,080 m³/h
- Power Consumption: 0.36 kW
- Current: 3.0 A
- Power Supply: 230 V
- Motor Type: AC motor
- Drive System: Direct drive
- Motor Efficiency: IE2
