Ceiling Fans

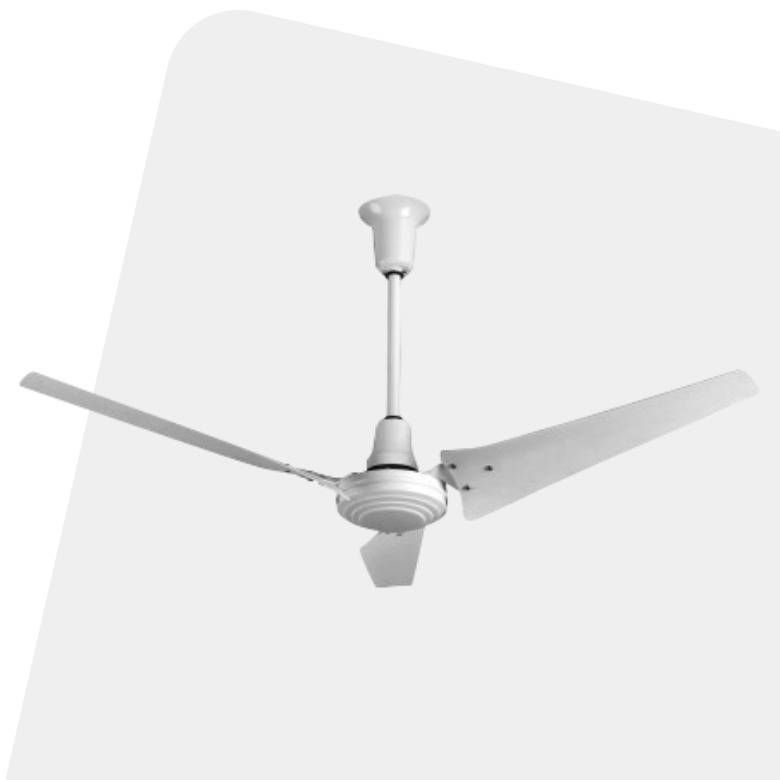

Royal De Boer Ceiling Fans
The Royal De Boer Ceiling Fan is a highly efficient industrial fan designed to deliver reliable airflow in a range of agricultural environments, including straw yards, calf housing, and dairy barns.
Equipped with durable plastic blades, the fan provides powerful cooling at higher speeds while also maintaining a consistent indoor climate when operated at lower speeds. This makes it a versatile solution for year-round ventilation and temperature control.
For optimal performance, the fan should be installed at a minimum height of 3.5 metres, with maximum efficiency achieved at installation heights up to 6 metres.
Key Features
- Strong cooling airflow at high speeds
- Maintains consistent indoor climate at lower speeds
- Durable plastic blades for long-lasting performance
- Suitable for straw yards, calf housing, and dairy barns
- Efficient and reliable operation
Technical Specifications
- Diameter: 152 cm (60”)
- Air Capacity: 11,250 m³/hour
- Rotational Speed: 270 RPM
- Maximum Spacing: 4.5 m
- Power Consumption: 0.075 kW
- Power Supply: 240 V
- Minimum Installation Height: 3.5 m
HVLS Fan (High Volume Low Speed)
The HVLS Fan is an ultra-quiet, slow-rotating ceiling fan designed to move large volumes of air at low speed, creating a gentle and consistent airflow throughout the building.
Installed horizontally, the fan pushes air downwards, providing wide coverage across large areas. This makes it ideal for cooling straw yards, treatment areas, and waiting zones. The smaller 3-metre version is particularly suited to waiting areas for milking robots.
Powered by a direct drive EC motor, the HVLS Fan delivers maximum energy efficiency with minimal maintenance requirements.
Key Features
- Very low energy consumption
- High air displacement for large coverage areas
- Quiet operation for improved livestock comfort
- Direct drive EC motor for efficiency and reliability
- Central control system capable of operating up to 20 fans
