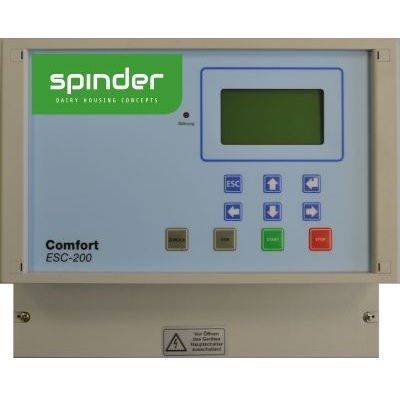

Control Panels for Manure Scraper Systems
Spinder manure scraper installations are controlled using advanced Prinzing electronic control panels, providing safe, reliable, and fully automated operation. These systems continuously monitor the performance of the scraper by measuring the current consumption of the drive motor. If the system detects resistance beyond the preset limit, the motor is automatically switched off, protecting both the equipment and livestock.
Designed for precision and flexibility, these control panels allow farmers to manage manure removal efficiently while adapting to the specific needs of their barn. Whether operating manually or automatically, the system ensures smooth and consistent performance throughout the day.
Key features include continuous measurement of tensile force, with the option to manually or automatically set maximum traction levels. Different traction values can be configured for forward and reverse movement, allowing for optimal operation across varying conditions. An integrated timer enables users to schedule scraper cycles, while automatic start functions can be triggered by preset times or temperature-based frost protection programmes.
Additional functionality includes connections for external controls and fault signals, such as sirens, ensuring any issues are quickly identified and addressed.
Specifications
These control panels are compatible with both Spinder PE rope-driven slatted floor scrapers and combi-scraper systems.
Control Panel Types
Basic – ESB210
- Suitable for one system with two drive units
- Automatic shutdown when maximum pulling force is exceeded
- Learning programme for system optimisation
- Automatic adjustment to power fluctuations
- Manual or fully automatic operation
- Two scraper programmes
- Adjustable stand-by position
- Two frost protection programmes
- Illuminated display
ESC400
Includes all features of the ESB210, plus:
- Detection of animals and obstacles for added safety
- Mid-point discharge capability
- Step-by-step movement control
- Connection for external relay control
- Suitable for up to six systems, each with two drive units
- Connectivity to computer and/or mobile device
- Six programmable scraper cycles
- Individual programming for each system
- Up to 24 start times per day
- Continuous operation logging
- USB log file export
- Parking position per scraper
- 7-inch touchscreen control panel
Spinder control panels offer intelligent, automated management of manure scraping systems, improving efficiency, reducing manual input, and ensuring a safe and consistent barn environment.
All information about the control panels
for the manure scrapers can be found here:
An installation manual is available for Control panel ESC300. Click on the link below to download the pdf file.
