Manure scrapers in general
Rope-Driven Manure Scraper System
The Spinder rope-driven manure scraper system is a reliable and efficient solution for keeping livestock housing clean, dry, and hygienic. Designed with both cow welfare and ease of use in mind, this system ensures consistent manure removal while operating smoothly within the barn environment.
The system consists of two drive units with drum drive, connected by durable Spinder PE rope, along with plastic corner wheels and one or more scrapers. This setup allows for flexible installation across a wide range of barn layouts, including free stall systems with uneven passage lengths. Its rope-driven design makes it particularly animal-friendly, operating quietly and without disruption to livestock.
Built for long-term durability, the system features a heavy-duty, hot-dip galvanised frame, complete with a winding drum and motor reductor. The Spinder PE rope is available in 8 mm or 10 mm thickness, offering high tensile strength of up to 9000 kg. Low-maintenance plastic corner wheels ensure smooth operation, while integrated controls such as a digital timer, frost protection, and emergency stop provide safe and automated functionality.
The drive units can be installed directly onto the floor or mounted on a console, and can be positioned either inside or outside the barn depending on your setup. This system is particularly well suited to barns with an odd number of manure alleys and is compatible with both combi-scraper and slatted floor scraper configurations.
By maintaining cleaner passageways, the system helps to improve overall herd hygiene, resulting in cleaner cubicles, reduced hoof problems, and less reliance on bedding materials such as straw or sawdust. Cleaner cows also contribute to more efficient and hygienic milking routines.
Specifications

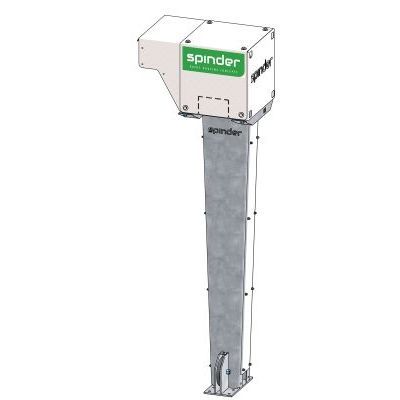

Drive Units
- 0.55 kW or 0.75 kW drive unit on console, including reel
- 0.55 kW or 0.75 kW drive unit for direct floor mounting
Installation Components
- Mounting sets for slatted or concrete floors
- Plastic corner wheels for smooth rope guidance
- End stops for secure system operation
- Electronic control box (Comfort or Basic options)
- Main switch
Rope System
- Spinder PE rope available in 8 mm or 10 mm
- Tensile strength of 6000 kg or 9000 kg
This rope-driven manure scraper system provides a low-maintenance, dependable solution for modern farms looking to improve cleanliness, reduce labour, and support better livestock health.
All information about the Rope-driven manure scrapers
can be found here:
An installation manual is available for Manure scraper accessories. Click on the link below to download the pdf file.
