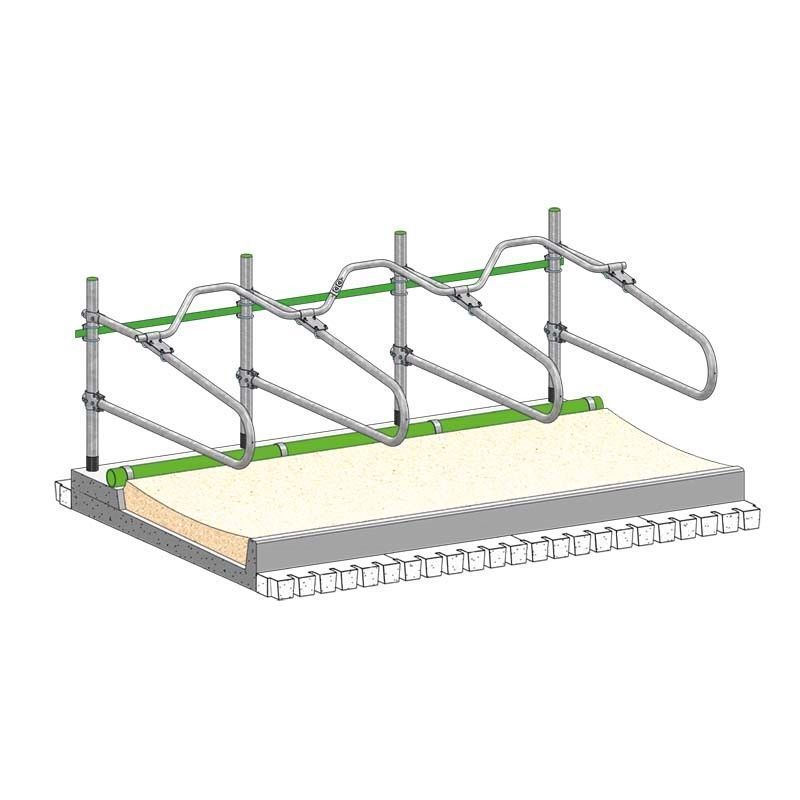

Model Vetvice Sandcubicle
Vetvice Sandcubicle
The Spinder Vetvice Sandcubicle is a specialist freestall divider developed specifically for sand-bedded cubicles, in collaboration with Vetvice Barn Design Consultancy. Designed to optimise both cow comfort and farm efficiency, this system provides excellent guidance while allowing for easy maintenance of sand-based stalls.
The unique shape of the divider creates ample clearance beneath the structure, making it possible to mechanically level the sand on a regular basis. This ensures the cubicle remains comfortable for the cow while also reducing labour for the farmer. Sand bedding is widely recognised for its comfort and hygiene benefits, and the Vetvice Sandcubicle is engineered to maximise these advantages.
Suitable for cubicles with a width of 120 cm or more (centre to centre), the system is supplied with a matching waved neck rail and head rail or strap to ensure correct cow positioning. The design encourages cows to lie straight within the cubicle, helping to maintain cleanliness and improve overall stall hygiene.
For optimal results, a net cubicle length of 185 cm is recommended. The knee rail should typically be positioned with its top no more than 8 cm above the rear edge, with adjustable options available to tailor the setup to your herd.
Key Features
- Specifically designed for sand-bedded cubicles
- Excellent guiding characteristics for correct cow positioning
- Large clearance underneath for mechanical levelling of sand
- Height adjustable for precise setup and flexibility
- Supports improved hygiene and cow comfort
Specifications
Available Sizes
The Vetvice Sandcubicle is available in multiple configurations for both single and double cubicle layouts:
- 218 – for stall floors over 250 cm
- 208 – for stall floors around 240 cm
- 193 – for stall floors around 190 cm
- 238/238 – for stall floors 520 cm
- 228/228 – for stall floors 500 cm
- 218/218 – for stall floors 480 cm
- 208/208 – for stall floors 460 cm
- 193/208 – for stall floors 445 cm
Installation
- Mounted on 76 mm support posts
- Supplied with divider and clamps for secure attachment
Accessories
- Waved neck rail for guiding cow positioning
- Knee rail for correct lying posture
- Additional mounting accessories available as required
The Spinder Vetvice Sandcubicle provides a practical, durable, and cow-focused solution for sand bedding systems, helping to improve comfort, maintain hygiene, and support efficient barn management.
